DAC70BH-CSB-I

In Stock: 5

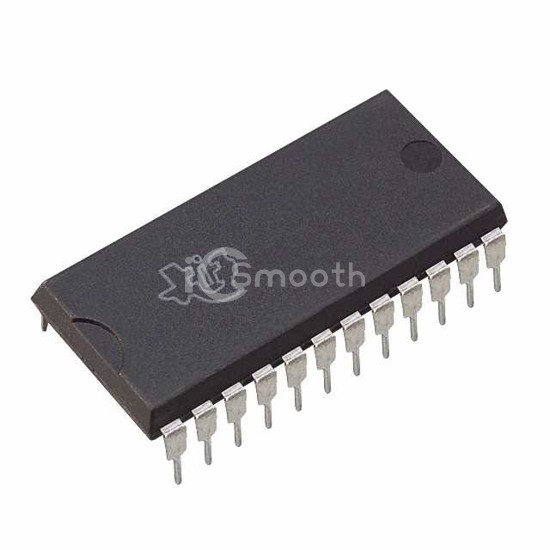

DAC70BH-CSB-I - Texas Instruments - Data Acquisition - Digital to Analog Converters (DAC)
REF: DAC70BH-CSB-I Texas Instruments
DAC70BH-CSB-I

Texas Instruments

IC DAC 16BIT V-OUT 24CDIP

DAC70BH-CSB-I is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Texas Instruments. IC DAC 16BIT V-OUT 24CDIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - supply, digital 5V, package / case 24-CDIP (0.600", 15.24mm).

Datasheet Request a Quote

In Stock: 5

Tiered Pricing USD
1+ $199.8500 —
10+ $170.4630 -15%
25+ $163.1288 -18% BEST

Specifications

16 parameters
Product StatusObsolete
Number of Bits16
Number of D/A Converters1
Settling Time10µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeInternal
Voltage - Supply, Analog±14.5V ~ 15.5V, 5V
Voltage - Supply, Digital5V
INL/DNL (LSB)-
ArchitectureR-2R
Operating Temperature-25°C ~ 85°C
Package / Case24-CDIP (0.600", 15.24mm)
Supplier Device Package24-CDIP
Mounting TypeThrough Hole
