DAC60501MDQFT

In Stock: 5,412
DAC60501MDQFT - Texas Instruments - Data Acquisition - Digital to Analog Converters (DAC)
REF: DAC60501MDQFT Texas Instruments

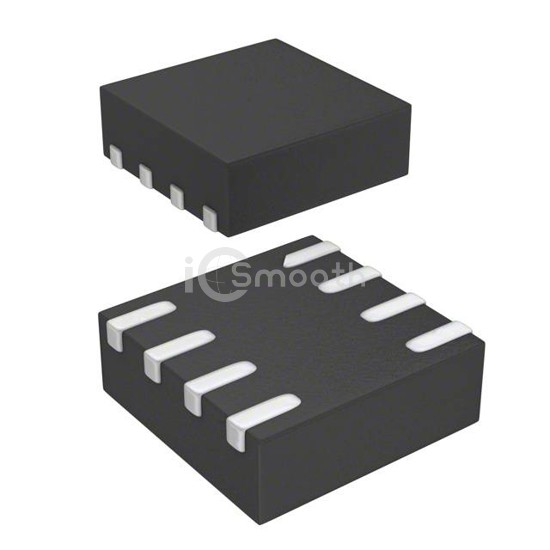

DAC60501MDQFT

Texas Instruments

SINGLE CHANNEL DAC 12BIT- MIDCOD

DAC60501MDQFT is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Texas Instruments. SINGLE CHANNEL DAC 12BIT- MIDCOD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 8-WFDFN.

Datasheet Request a Quote

In Stock: 5,412

Tiered Pricing USD
1+ $3.1500 —
10+ $2.3630 -25%
25+ $2.1660 -31%
100+ $1.9490 -38% BEST

Specifications

16 parameters
Product StatusActive
Number of Bits12
Number of D/A Converters1
Settling Time5µs (Typ)
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceI²C, SPI
Reference TypeExternal, Internal
Voltage - Supply, Analog2.7V ~ 5.5V
Voltage - Supply, Digital2.7V ~ 5.5V
INL/DNL (LSB)±1 (Max), ±1 (Max)
ArchitectureR-2R
Operating Temperature-40°C ~ 125°C
Package / Case8-WFDFN
Supplier Device Package8-WSON (2x2)
Mounting TypeSurface Mount
