Name: CSD43301Q5M
Brand: Texas Instruments
SKU: CSD43301Q5M
Price: 3.89 USD
Availability: InStock

REF: CSD43301Q5M Texas Instruments

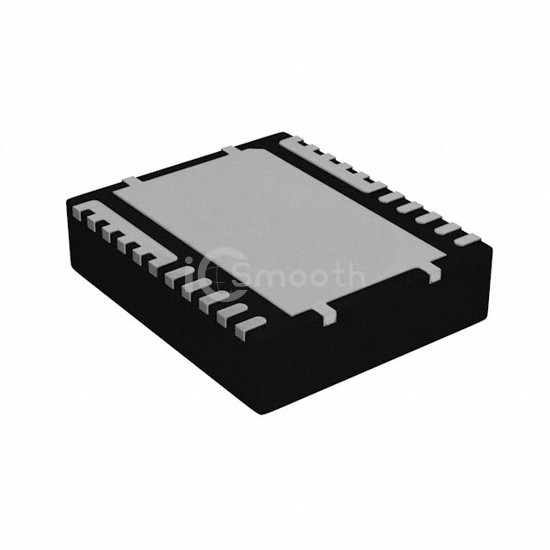

CSD43301Q5M

IC PWR DRIVER N-CHAN 1:1 12LSON

CSD43301Q5M is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. IC PWR DRIVER N-CHAN 1:1 12LSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 12-Power LFDFN.

Datasheet Request a Quote

In Stock: 12,481

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	Low Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	4.5V ~ 6V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	80A
Rds On (Typ)	0.55mOhm
Input Type	-
Features	-
Fault Protection	UVLO
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	12-LSON (5x6)
Package / Case	12-Power LFDFN
