CD54HCT574F3A

In Stock: 4,988

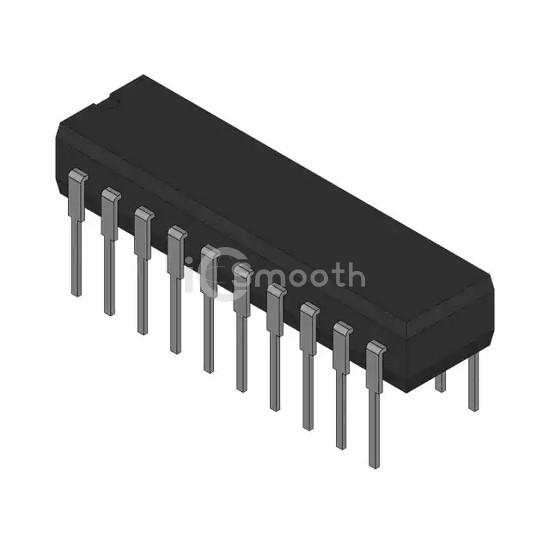

CD54HCT574F3A - Texas Instruments - Logic - Flip Flops
REF: CD54HCT574F3A Texas Instruments
CD54HCT574F3A

Texas Instruments

IC FF D-TYPE SNGL 8BIT 20CDIP

CD54HCT574F3A is a Logic - Flip Flops manufactured by Texas Instruments. IC FF D-TYPE SNGL 8BIT 20CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 20-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 4,988

Specifications

17 parameters
Product StatusActive
FunctionStandard
TypeD-Type
Output TypeTri-State, Non-Inverted
Number of Elements1
Number of Bits per Element8
Clock Frequency30 MHz
Max Propagation Delay @ V, Max CL33ns @ 4.5V, 50pF
Trigger TypePositive Edge
Current - Output High, Low6mA, 6mA
Voltage - Supply4.5V ~ 5.5V
Current - Quiescent (Iq)8 µA
Input Capacitance10 pF
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeThrough Hole
Supplier Device Package20-CDIP
Package / Case20-CDIP (0.300", 7.62mm)
