CC2560BYFVR

In Stock: 2,846

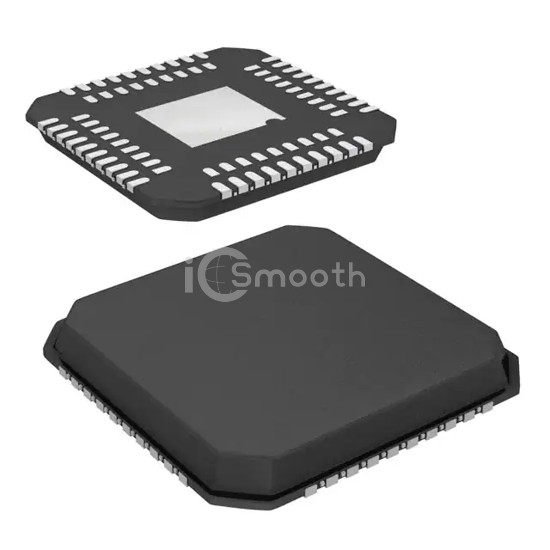

CC2560BYFVR - Texas Instruments - RF Transceiver ICs
REF: CC2560BYFVR Texas Instruments
CC2560BYFVR

Texas Instruments

IC RF TXRX BLUETOOTH 76QFN

CC2560BYFVR is a RF Transceiver ICs manufactured by Texas Instruments. IC RF TXRX BLUETOOTH 76QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2.2V ~ 4.8V, package / case 54-UFBGA, DSBGA.

Datasheet Request a Quote

In Stock: 2,846

Specifications

19 parameters
Product StatusActive
TypeTxRx Only
RF Family/StandardBluetooth
ProtocolBluetooth v4.1
ModulationGFSK, GMSK
Frequency2.4GHz
Data Rate (Max)4Mbps
Power - Output12dBm
Sensitivity-95dBm
Memory Size-
Serial InterfacesI²S, UART
GPIO-
Voltage - Supply2.2V ~ 4.8V
Current - Receiving40.5mA ~ 41.2mA
Current - Transmitting40.5mA ~ 41.2mA
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case54-UFBGA, DSBGA
Supplier Device Package54-DSBGA (2.93x3.27)
