CC2538NF23RTQR

In Stock: 3,322

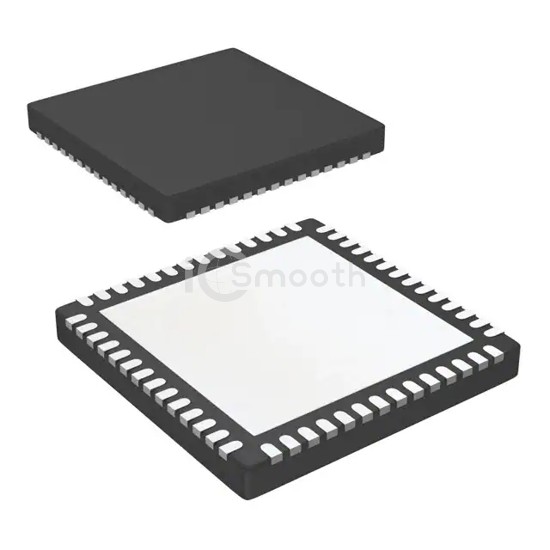

CC2538NF23RTQR - Texas Instruments - RF Transceiver ICs
REF: CC2538NF23RTQR Texas Instruments
CC2538NF23RTQR

Texas Instruments

IC RF TXRX+MCU 802.15.4 56VFQFN

CC2538NF23RTQR is a RF Transceiver ICs manufactured by Texas Instruments. IC RF TXRX+MCU 802.15.4 56VFQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 3.6V, package / case 56-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,322

Specifications

19 parameters
Product StatusActive
TypeTxRx + MCU
RF Family/Standard802.15.4
Protocol6LoWPAN, Zigbee®
Modulation-
Frequency2.4GHz
Data Rate (Max)250kbps
Power - Output7dbm
Sensitivity-97dBm
Memory Size256kB Flash, 32kB RAM
Serial InterfacesI²C, JTAG, SPI, UART, USB
GPIO32
Voltage - Supply2V ~ 3.6V
Current - Receiving20mA ~ 24mA
Current - Transmitting24mA ~ 34mA
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case56-VFQFN Exposed Pad
Supplier Device Package56-QFN (8x8)
