CC2520RHDRG4

In Stock: 9,670

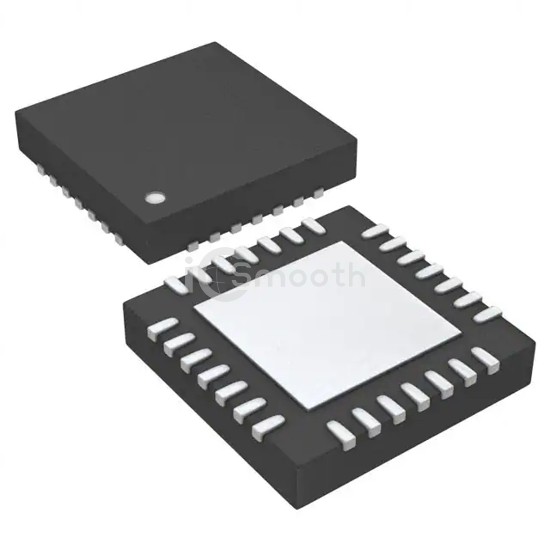

CC2520RHDRG4 - Texas Instruments - RF Transceiver ICs
REF: CC2520RHDRG4 Texas Instruments
CC2520RHDRG4

Texas Instruments

IC RF TXRX+MCU 802.15.4 28VFQFN

CC2520RHDRG4 is a RF Transceiver ICs manufactured by Texas Instruments. IC RF TXRX+MCU 802.15.4 28VFQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.8V ~ 3.8V, package / case 28-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,670

Specifications

19 parameters
Product StatusDiscontinued at Digi-Key
TypeTxRx + MCU
RF Family/Standard802.15.4
ProtocolZigbee®
ModulationDSSS, O-QPSK
Frequency2.4GHz
Data Rate (Max)250kbps
Power - Output5dBm
Sensitivity-98dBm
Memory Size768B RAM
Serial InterfacesSPI
GPIO6
Voltage - Supply1.8V ~ 3.8V
Current - Receiving18.5mA ~ 22.3mA
Current - Transmitting25.8mA ~ 33.6mA
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case28-VFQFN Exposed Pad
Supplier Device Package28-VQFN (5x5)
