BQ24156AYFFR

In Stock: 66,163

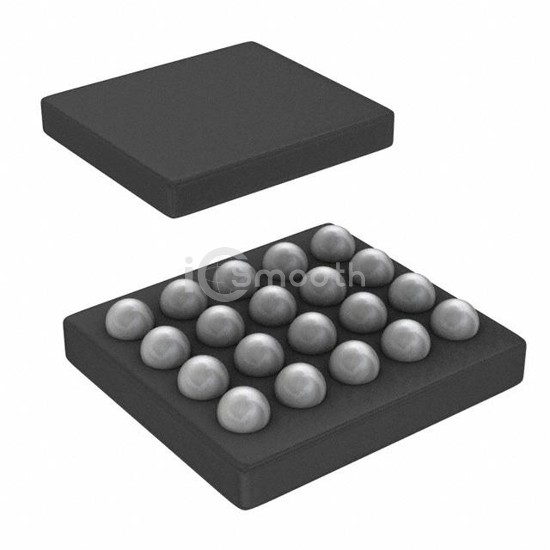

BQ24156AYFFR - Texas Instruments - PMIC - Battery Chargers
REF: BQ24156AYFFR Texas Instruments
BQ24156AYFFR

Texas Instruments

IC BATT CHG LI-ION 1CELL 20DSBGA

BQ24156AYFFR is a PMIC - Battery Chargers manufactured by Texas Instruments. IC BATT CHG LI-ION 1CELL 20DSBGA. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C (TA), package / case 20-UFBGA, DSBGA, interface I²C.

Datasheet Request a Quote

In Stock: 66,163

Specifications

14 parameters
Product StatusActive
Battery ChemistryLithium Ion/Polymer
Number of Cells1
Current - ChargingConstant - Programmable
Programmable FeaturesCurrent, Timer
Fault ProtectionOver Temperature, Over Voltage
Charge Current - Max1.55A
Battery Pack Voltage4.44V (Max)
Voltage - Supply (Max)9V
InterfaceI²C
Operating Temperature-30°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case20-UFBGA, DSBGA
Supplier Device Package20-DSBGA
