BQ24120RHLR

In Stock: 8,621

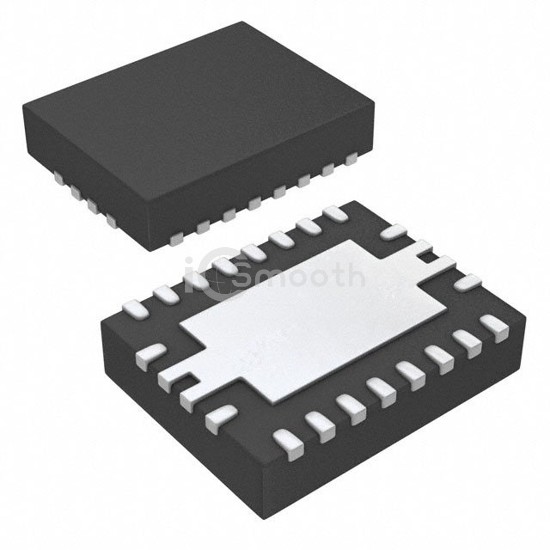

BQ24120RHLR - Texas Instruments - PMIC - Battery Chargers
REF: BQ24120RHLR Texas Instruments
BQ24120RHLR

Texas Instruments

IC BATT CHG LI-ION 1CELL 20VQFN

BQ24120RHLR is a PMIC - Battery Chargers manufactured by Texas Instruments. IC BATT CHG LI-ION 1CELL 20VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 20-VFQFN Exposed Pad, battery chemistry Lithium Ion/Polymer.

Datasheet Request a Quote

In Stock: 8,621

Tiered Pricing USD
1+ $4.9400 —
10+ $3.7620 -24%
25+ $3.4680 -30%
100+ $3.1441 -36%
250+ $2.9898 -39%
500+ $2.8968 -41%
1,000+ $2.8202 -43% BEST

Specifications

14 parameters
Product StatusActive
Battery ChemistryLithium Ion/Polymer
Number of Cells1
Current - ChargingConstant - Programmable
Programmable FeaturesCurrent, Timer
Fault ProtectionOver Temperature
Charge Current - Max2A
Battery Pack Voltage4.2V
Voltage - Supply (Max)16V
Interface-
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case20-VFQFN Exposed Pad
Supplier Device Package20-VQFN (3.5x4.5)
