BQ24109RHLT

In Stock: 7,121

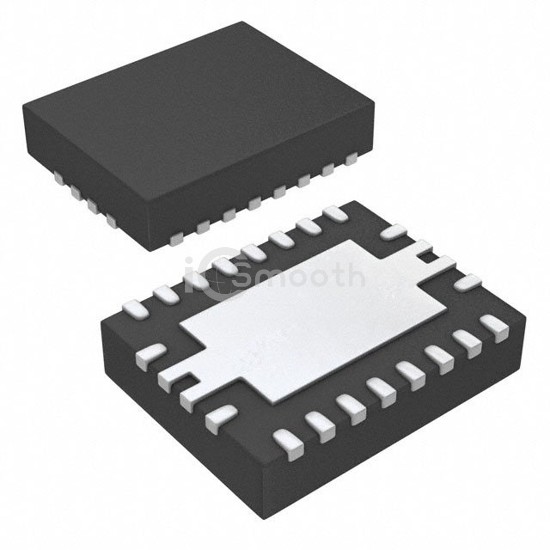

BQ24109RHLT - Texas Instruments - PMIC - Battery Chargers
REF: BQ24109RHLT Texas Instruments
BQ24109RHLT

Texas Instruments

IC BATT CHG LI-ION 1CELL 20VQFN

BQ24109RHLT is a PMIC - Battery Chargers manufactured by Texas Instruments. IC BATT CHG LI-ION 1CELL 20VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 20-VFQFN Exposed Pad, battery chemistry Lithium Ion/Polymer.

Datasheet Request a Quote

In Stock: 7,121

Tiered Pricing USD
1+ $6.3700 —
10+ $4.8910 -23%
25+ $4.5224 -29%
100+ $4.1170 -35% BEST

Specifications

14 parameters
Product StatusActive
Battery ChemistryLithium Ion/Polymer
Number of Cells1
Current - ChargingConstant - Programmable
Programmable FeaturesCurrent, Timer
Fault ProtectionOver Temperature, Over Voltage
Charge Current - Max2A
Battery Pack Voltage4.2V
Voltage - Supply (Max)16V
Interface-
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case20-VFQFN Exposed Pad
Supplier Device Package20-VQFN (3.5x4.5)
