Name: ADS8509IDB
Brand: Texas Instruments
SKU: ADS8509IDB
Price: 29.93 USD
Availability: InStock

REF: ADS8509IDB Texas Instruments

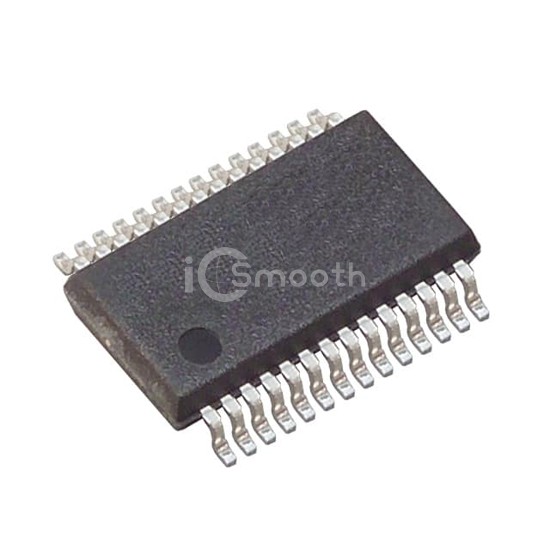

ADS8509IDB

IC ADC 16BIT SAR 28SSOP

ADS8509IDB is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 16BIT SAR 28SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, package / case 28-SSOP (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 392

Tiered Pricing USD

1+ $29.9300 —

10+ $24.1930 -19%

50+ $21.8960 -27%

100+ $21.1848 -29%

250+ $20.4339 -32%

500+ $19.9815 -33% BEST

Specifications

18 parameters

Product Status	Active
Number of Bits	16
Sampling Rate (Per Second)	250k
Number of Inputs	1
Input Type	Single Ended
Data Interface	SPI
Configuration	S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	SAR
Reference Type	External, Internal
Voltage - Supply, Analog	5V
Voltage - Supply, Digital	5V
Features	-
Operating Temperature	-40°C ~ 85°C
Package / Case	28-SSOP (0.209", 5.30mm Width)
Supplier Device Package	28-SSOP
Mounting Type	Surface Mount
