ADS8284IBRGCR

In Stock: 1,744

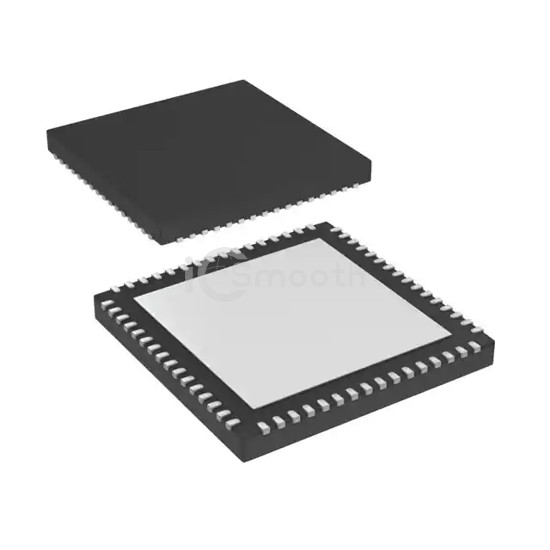

ADS8284IBRGCR - Texas Instruments - Data Acquisition - Analog to Digital Converters (ADC)
REF: ADS8284IBRGCR Texas Instruments
ADS8284IBRGCR

Texas Instruments

IC ADC 18BIT SAR 64VQFN

ADS8284IBRGCR is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 18BIT SAR 64VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 3.3V, package / case 64-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,744

Specifications

18 parameters
Product StatusNot For New Designs
Number of Bits18
Sampling Rate (Per Second)1M
Number of Inputs4
Input TypePseudo-Differential
Data InterfaceParallel
ConfigurationMUX-S/H-ADC
Ratio - S/H:ADC1:1
Number of A/D Converters1
ArchitectureSAR
Reference TypeExternal, Internal
Voltage - Supply, Analog5V
Voltage - Supply, Digital2.7V ~ 3.3V
Features-
Operating Temperature-40°C ~ 85°C
Package / Case64-VFQFN Exposed Pad
Supplier Device Package64-VQFN (9x9)
Mounting TypeSurface Mount
