Name: ADS7959SDBTR
Brand: Texas Instruments
SKU: ADS7959SDBTR
Price: 2.17 USD
Availability: InStock

REF: ADS7959SDBTR Texas Instruments

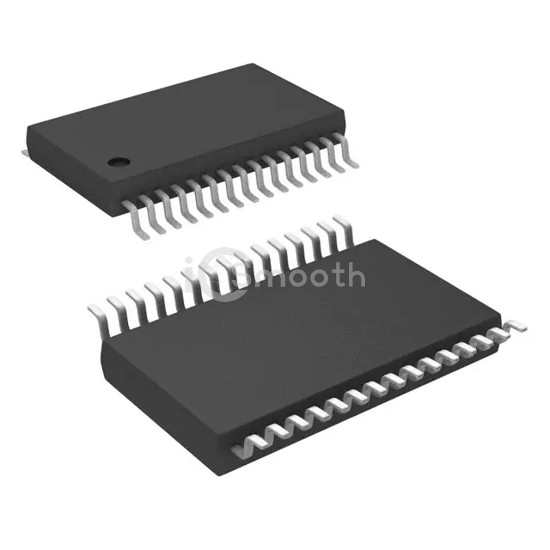

ADS7959SDBTR

IC ADC 8BIT SAR 30TSSOP

ADS7959SDBTR is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 8BIT SAR 30TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 1.7V ~ 5.25V, package / case 30-TFSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 71,225

Tiered Pricing USD

2,000+ $2.1696 —

4,000+ $2.1270 -2% BEST

Specifications

18 parameters

Product Status	Active
Number of Bits	8
Sampling Rate (Per Second)	1M
Number of Inputs	8
Input Type	Single Ended
Data Interface	SPI
Configuration	MUX-S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	SAR
Reference Type	External
Voltage - Supply, Analog	2.7V ~ 5.25V
Voltage - Supply, Digital	1.7V ~ 5.25V
Features	-
Operating Temperature	-40°C ~ 125°C
Package / Case	30-TFSOP (0.173", 4.40mm Width)
Supplier Device Package	30-TSSOP
Mounting Type	Surface Mount
