Name: ADS7863IDBQ
Brand: Texas Instruments
SKU: ADS7863IDBQ
Price: 20.93 USD
Availability: InStock

REF: ADS7863IDBQ Texas Instruments

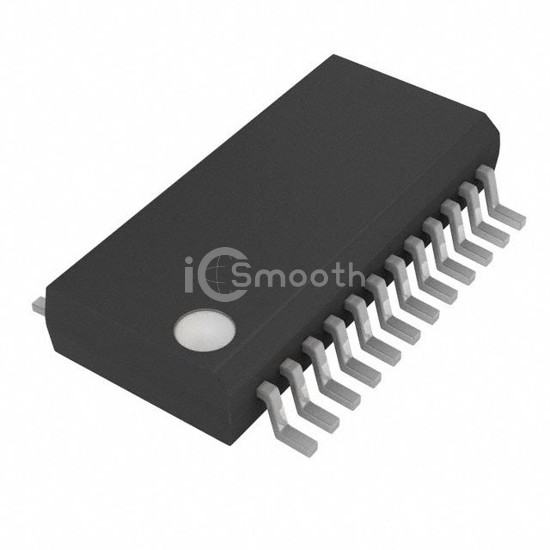

ADS7863IDBQ

IC ADC 12BIT SAR 24SSOP

ADS7863IDBQ is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 12BIT SAR 24SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 24-SSOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 9,243

Tiered Pricing USD

1+ $20.9300 —

10+ $16.7270 -20%

50+ $15.0442 -28%

100+ $14.5235 -31%

250+ $13.9736 -33%

500+ $13.6422 -35% BEST

Specifications

18 parameters

Product Status	Not For New Designs
Number of Bits	12
Sampling Rate (Per Second)	2M
Number of Inputs	4, 6
Input Type	Differential, Pseudo-Differential
Data Interface	SPI
Configuration	MUX-S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	2

Architecture	SAR
Reference Type	External, Internal
Voltage - Supply, Analog	2.7V ~ 5.5V
Voltage - Supply, Digital	2.7V ~ 5.5V
Features	Simultaneous Sampling
Operating Temperature	-40°C ~ 125°C
Package / Case	24-SSOP (0.154", 3.90mm Width)
Supplier Device Package	24-SSOP
Mounting Type	Surface Mount
