Name: ADS7844EB
Brand: Texas Instruments
SKU: ADS7844EB
Price: 13.12 USD
Availability: InStock

REF: ADS7844EB Texas Instruments

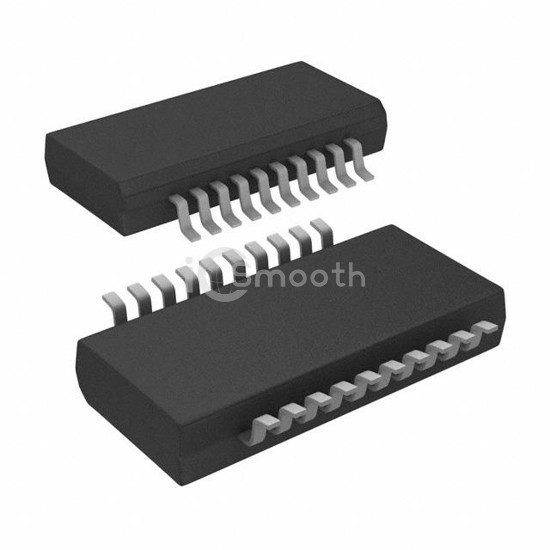

ADS7844EB

IC ADC 12BIT SAR 20SSOP

ADS7844EB is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 12BIT SAR 20SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 3.6V, 5V, package / case 20-SSOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 4,792

Tiered Pricing USD

1+ $13.1200 —

10+ $10.3290 -21%

50+ $9.2108 -30%

100+ $8.8647 -32%

250+ $8.4992 -35%

500+ $8.2789 -37%

1,000+ $8.0976 -38% BEST

Specifications

18 parameters

Product Status	Active
Number of Bits	12
Sampling Rate (Per Second)	200k
Number of Inputs	4, 8
Input Type	Differential, Single Ended
Data Interface	SPI
Configuration	MUX-S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	SAR
Reference Type	External
Voltage - Supply, Analog	2.7V ~ 3.6V, 5V
Voltage - Supply, Digital	2.7V ~ 3.6V, 5V
Features	-
Operating Temperature	-40°C ~ 85°C
Package / Case	20-SSOP (0.154", 3.90mm Width)
Supplier Device Package	20-SSOP
Mounting Type	Surface Mount
