ADS5500MPAPREP

In Stock: 8,347
ADS5500MPAPREP - Texas Instruments - Data Acquisition - Analog to Digital Converters (ADC)
REF: ADS5500MPAPREP Texas Instruments
ADS5500MPAPREP

Texas Instruments

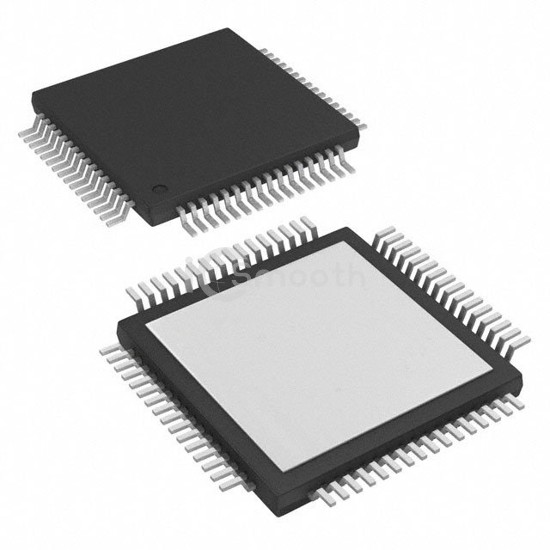

IC ADC 14BIT PIPELINED 64HTQFP

ADS5500MPAPREP is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 14BIT PIPELINED 64HTQFP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply, digital 3V ~ 3.6V, package / case 64-PowerTQFP.

Datasheet Request a Quote

In Stock: 8,347

Specifications

18 parameters
Product StatusActive
Number of Bits14
Sampling Rate (Per Second)125M
Number of Inputs1
Input TypeDifferential
Data InterfaceParallel
ConfigurationS/H-ADC
Ratio - S/H:ADC1:1
Number of A/D Converters1
ArchitecturePipelined
Reference TypeInternal
Voltage - Supply, Analog3V ~ 3.6V
Voltage - Supply, Digital3V ~ 3.6V
Features-
Operating Temperature-55°C ~ 125°C
Package / Case64-PowerTQFP
Supplier Device Package64-HTQFP (10x10)
Mounting TypeSurface Mount
