ADS54RF63IPFP

In Stock: 6,711

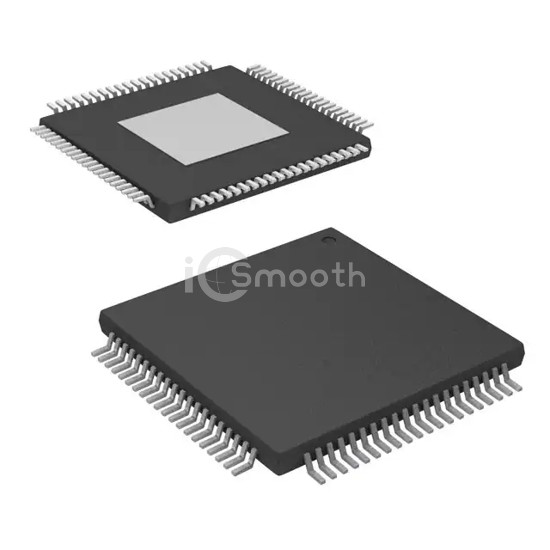

ADS54RF63IPFP - Texas Instruments - Data Acquisition - Analog to Digital Converters (ADC)
REF: ADS54RF63IPFP Texas Instruments
ADS54RF63IPFP

Texas Instruments

IC ADC 12BIT PIPELINED 80HTQFP

ADS54RF63IPFP is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 12BIT PIPELINED 80HTQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 3V ~ 3.6V, package / case 80-TQFP Exposed Pad.

Datasheet Request a Quote

In Stock: 6,711

Tiered Pricing USD
1+ $414.3700 —
12+ $356.8175 -14%
27+ $345.2059 -17% BEST

Specifications

18 parameters
Product StatusActive
Number of Bits12
Sampling Rate (Per Second)550M
Number of Inputs1
Input TypeDifferential
Data InterfaceParallel
ConfigurationS/H-ADC
Ratio - S/H:ADC1:1
Number of A/D Converters1
ArchitecturePipelined
Reference TypeInternal
Voltage - Supply, Analog3V ~ 3.6V, 5V
Voltage - Supply, Digital3V ~ 3.6V
Features-
Operating Temperature-40°C ~ 85°C
Package / Case80-TQFP Exposed Pad
Supplier Device Package80-HTQFP (12x12)
Mounting TypeSurface Mount
