ADS5424IPGPR

In Stock: 3,733

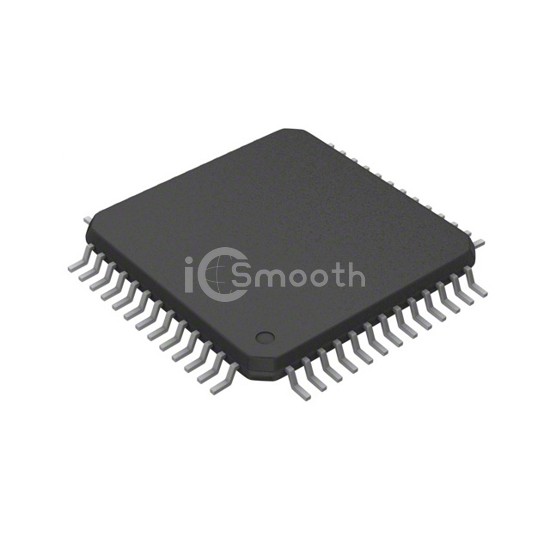

ADS5424IPGPR - Texas Instruments - Data Acquisition - Analog to Digital Converters (ADC)
REF: ADS5424IPGPR Texas Instruments
ADS5424IPGPR

Texas Instruments

IC ADC 14BIT PIPELINED 52HTQFP

ADS5424IPGPR is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 14BIT PIPELINED 52HTQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, package / case 52-TQFP Exposed Pad.

Datasheet Request a Quote

In Stock: 3,733

Specifications

18 parameters
Product StatusActive
Number of Bits14
Sampling Rate (Per Second)105M
Number of Inputs1
Input TypeDifferential
Data InterfaceParallel
ConfigurationS/H-ADC
Ratio - S/H:ADC1:1
Number of A/D Converters1
ArchitecturePipelined
Reference TypeInternal
Voltage - Supply, Analog5V
Voltage - Supply, Digital5V
Features-
Operating Temperature-40°C ~ 85°C
Package / Case52-TQFP Exposed Pad
Supplier Device Package52-HTQFP (10x10)
Mounting TypeSurface Mount
