ADS5400IPZPR

In Stock: 4,674

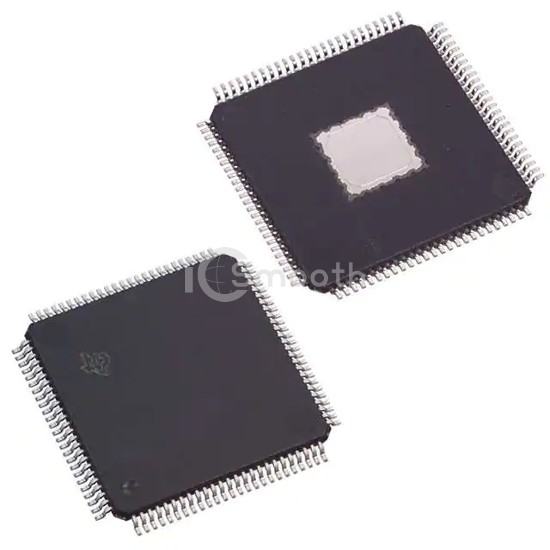

ADS5400IPZPR - Texas Instruments - Data Acquisition - Analog to Digital Converters (ADC)
REF: ADS5400IPZPR Texas Instruments
ADS5400IPZPR

Texas Instruments

IC ADC 12BIT PIPELINED 100HTQFP

ADS5400IPZPR is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 12BIT PIPELINED 100HTQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 3.135V ~ 3.465V, package / case 100-TQFP Exposed Pad.

Datasheet Request a Quote

In Stock: 4,674

Specifications

18 parameters
Product StatusActive
Number of Bits12
Sampling Rate (Per Second)1G
Number of Inputs1
Input TypeDifferential
Data InterfaceLVDS - Parallel
ConfigurationS/H-ADC
Ratio - S/H:ADC1:1
Number of A/D Converters1
ArchitecturePipelined
Reference TypeExternal, Internal
Voltage - Supply, Analog3.135V ~ 3.465V, 5V
Voltage - Supply, Digital3.135V ~ 3.465V
FeaturesTemperature Sensor
Operating Temperature-40°C ~ 85°C
Package / Case100-TQFP Exposed Pad
Supplier Device Package100-HTQFP (14x14)
Mounting TypeSurface Mount
