ADS5277IPFPT

In Stock: 3,334

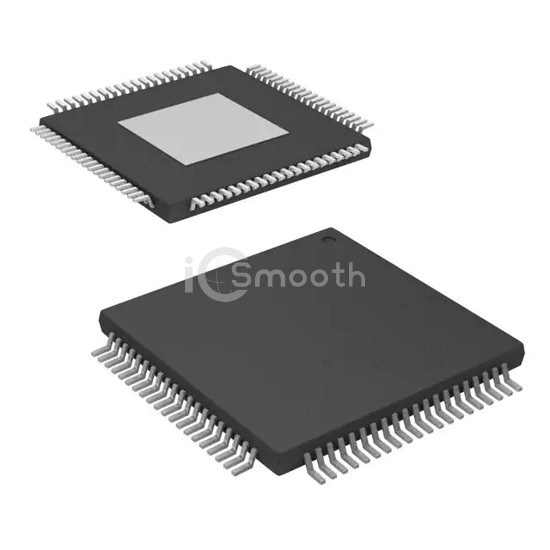

ADS5277IPFPT - Texas Instruments - Data Acquisition - Analog to Digital Converters (ADC)
REF: ADS5277IPFPT Texas Instruments
ADS5277IPFPT

Texas Instruments

IC ADC 10BIT PIPELINED 80HTQFP

ADS5277IPFPT is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 10BIT PIPELINED 80HTQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 3V ~ 3.6V, package / case 80-TQFP Exposed Pad.

Datasheet Request a Quote

In Stock: 3,334

Specifications

18 parameters
Product StatusActive
Number of Bits10
Sampling Rate (Per Second)65M
Number of Inputs8
Input TypeDifferential
Data InterfaceLVDS - Serial, SPI
ConfigurationS/H-ADC
Ratio - S/H:ADC1:1
Number of A/D Converters8
ArchitecturePipelined
Reference TypeExternal, Internal
Voltage - Supply, Analog3V ~ 3.6V
Voltage - Supply, Digital3V ~ 3.6V
FeaturesSimultaneous Sampling
Operating Temperature-40°C ~ 85°C
Package / Case80-TQFP Exposed Pad
Supplier Device Package80-HTQFP (12x12)
Mounting TypeSurface Mount
