ADS5242IPAP

In Stock: 2,976

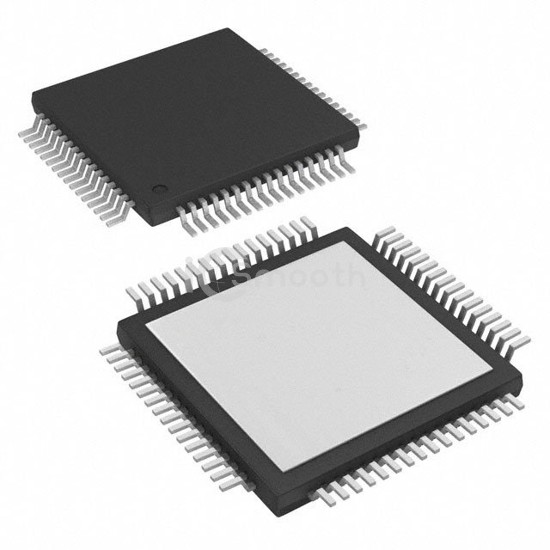

ADS5242IPAP - Texas Instruments - Data Acquisition - Analog to Digital Converters (ADC)
REF: ADS5242IPAP Texas Instruments
ADS5242IPAP

Texas Instruments

IC ADC 12BIT PIPELINED 64HTQFP

ADS5242IPAP is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 12BIT PIPELINED 64HTQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 3V ~ 3.6V, package / case 64-PowerTQFP.

Datasheet Request a Quote

In Stock: 2,976

Specifications

18 parameters
Product StatusActive
Number of Bits12
Sampling Rate (Per Second)65M
Number of Inputs4
Input TypeDifferential
Data InterfaceLVDS - Serial
ConfigurationS/H-ADC
Ratio - S/H:ADC1:1
Number of A/D Converters4
ArchitecturePipelined
Reference TypeExternal, Internal
Voltage - Supply, Analog3V ~ 3.6V
Voltage - Supply, Digital3V ~ 3.6V
FeaturesSimultaneous Sampling
Operating Temperature-40°C ~ 85°C
Package / Case64-PowerTQFP
Supplier Device Package64-HTQFP (10x10)
Mounting TypeSurface Mount
