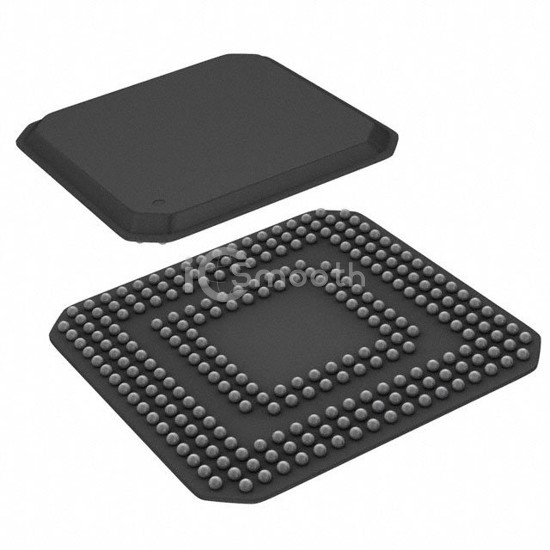

Name: ADS5120CZHK
Brand: Texas Instruments
SKU: ADS5120CZHK
Price: 103.16 USD
Availability: InStock

REF: ADS5120CZHK Texas Instruments

ADS5120CZHK

IC ADC 10BIT PIPELINED 257BGA

ADS5120CZHK is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 10BIT PIPELINED 257BGA. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 1.65V ~ 2V, package / case 257-LFBGA.

Datasheet Request a Quote

In Stock: 5

Specifications

18 parameters

Product Status	Obsolete
Number of Bits	10
Sampling Rate (Per Second)	40M
Number of Inputs	8
Input Type	Differential, Single Ended
Data Interface	Parallel
Configuration	S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	8

Architecture	Pipelined
Reference Type	External, Internal
Voltage - Supply, Analog	1.65V ~ 2V
Voltage - Supply, Digital	1.65V ~ 2V
Features	Simultaneous Sampling
Operating Temperature	0°C ~ 70°C
Package / Case	257-LFBGA
Supplier Device Package	257-BGA MICROSTAR (16x16)
Mounting Type	Surface Mount
