ADS42JB46IRGCT

In Stock: 5,085
ADS42JB46IRGCT - Texas Instruments - Data Acquisition - Analog to Digital Converters (ADC)
REF: ADS42JB46IRGCT Texas Instruments
ADS42JB46IRGCT

Texas Instruments

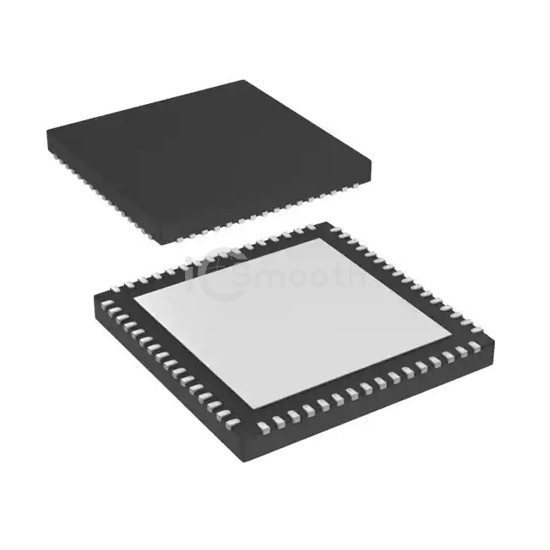

IC ADC 14BIT PIPELINED 64VQFN

ADS42JB46IRGCT is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 14BIT PIPELINED 64VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.7V ~ 1.9V, package / case 64-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,085

Specifications

18 parameters
Product StatusActive
Number of Bits14
Sampling Rate (Per Second)160M
Number of Inputs2
Input TypeDifferential
Data InterfaceJESD204B
ConfigurationS/H-ADC
Ratio - S/H:ADC1:1
Number of A/D Converters2
ArchitecturePipelined
Reference TypeInternal
Voltage - Supply, Analog1.7V ~ 1.9V
Voltage - Supply, Digital1.7V ~ 1.9V
FeaturesSimultaneous Sampling
Operating Temperature-40°C ~ 85°C
Package / Case64-VFQFN Exposed Pad
Supplier Device Package64-VQFN (9x9)
Mounting TypeSurface Mount
