Name: ADS1120IRVAT
Brand: Texas Instruments
SKU: ADS1120IRVAT
Price: 8.44 USD
Availability: InStock

REF: ADS1120IRVAT Texas Instruments

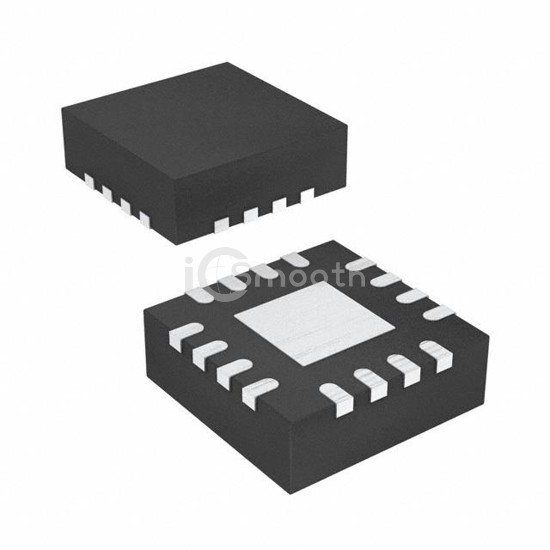

ADS1120IRVAT

IC ADC 16BIT SIGMA-DELTA 16VQFN

ADS1120IRVAT is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 16BIT SIGMA-DELTA 16VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 2.3V ~ 5.5V, package / case 16-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,009

Tiered Pricing USD

1+ $8.4400 —

10+ $6.5500 -22%

25+ $6.0764 -28%

100+ $5.5561 -34% BEST

Specifications

18 parameters

Product Status	Active
Number of Bits	16
Sampling Rate (Per Second)	2k
Number of Inputs	2, 4
Input Type	Differential, Single Ended
Data Interface	SPI
Configuration	MUX-PGA-ADC
Ratio - S/H:ADC	-
Number of A/D Converters	1

Architecture	Sigma-Delta
Reference Type	External, Internal, Supply
Voltage - Supply, Analog	2.3V ~ 5.5V
Voltage - Supply, Digital	2.3V ~ 5.5V
Features	PGA, Temperature Sensor
Operating Temperature	-40°C ~ 125°C
Package / Case	16-VFQFN Exposed Pad
Supplier Device Package	16-VQFN (3.5x3.5)
Mounting Type	Surface Mount
