ADC3643IRSBR

In Stock: 1,042

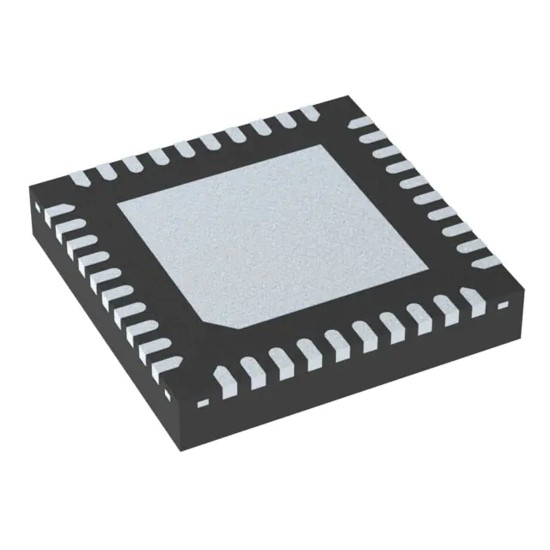

ADC3643IRSBR - Texas Instruments - Data Acquisition - Analog to Digital Converters (ADC)
REF: ADC3643IRSBR Texas Instruments
ADC3643IRSBR

Texas Instruments

IC ADC 14BIT SAR 40WQFN

ADC3643IRSBR is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 14BIT SAR 40WQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply, digital 1.75V ~ 1.85V, package / case 40-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,042

Specifications

18 parameters
Product StatusActive
Number of Bits14
Sampling Rate (Per Second)65M
Number of Inputs2
Input TypeDifferential, Single Ended
Data InterfaceSerial
ConfigurationPGA-ADC
Ratio - S/H:ADC0:1
Number of A/D Converters2
ArchitectureSAR
Reference TypeExternal, Internal
Voltage - Supply, Analog1.75V ~ 1.85V
Voltage - Supply, Digital1.75V ~ 1.85V
FeaturesPGA
Operating Temperature-40°C ~ 105°C
Package / Case40-WFQFN Exposed Pad
Supplier Device Package40-WQFN (5x5)
Mounting TypeSurface Mount
