ADC3442IRTQ25

In Stock: 19

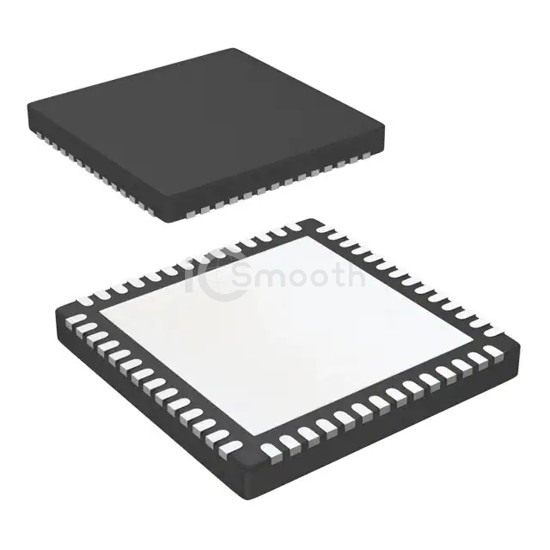

ADC3442IRTQ25 - Texas Instruments - Data Acquisition - Analog to Digital Converters (ADC)
REF: ADC3442IRTQ25 Texas Instruments
ADC3442IRTQ25

Texas Instruments

IC ADC 14BIT PIPELINED 56QFN

ADC3442IRTQ25 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 14BIT PIPELINED 56QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.7V ~ 1.9V, package / case 56-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 19

Specifications

18 parameters
Product StatusObsolete
Number of Bits14
Sampling Rate (Per Second)50M
Number of Inputs4
Input TypeDifferential
Data InterfaceLVDS - Serial
ConfigurationADC
Ratio - S/H:ADC-
Number of A/D Converters4
ArchitecturePipelined
Reference TypeExternal, Internal
Voltage - Supply, Analog1.7V ~ 1.9V
Voltage - Supply, Digital1.7V ~ 1.9V
FeaturesSimultaneous Sampling
Operating Temperature-40°C ~ 85°C
Package / Case56-VFQFN Exposed Pad
Supplier Device Package56-QFN (8x8)
Mounting TypeSurface Mount
