ADC3423IRTQ25

In Stock: 2,396

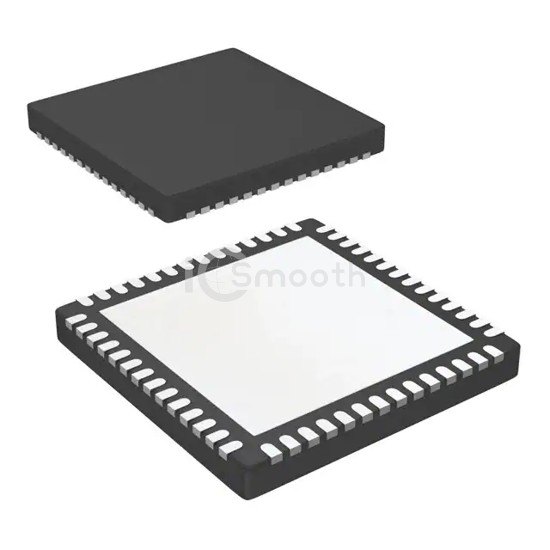

ADC3423IRTQ25 - Texas Instruments - Data Acquisition - Analog to Digital Converters (ADC)
REF: ADC3423IRTQ25 Texas Instruments
ADC3423IRTQ25

Texas Instruments

IC ADC 12BIT PIPELINED 56QFN

ADC3423IRTQ25 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 12BIT PIPELINED 56QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.7V ~ 1.9V, package / case 56-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,396

Tiered Pricing USD
25+ $66.1420 —
50+ $64.0444 -3%
75+ $62.9941 -5%
125+ $61.8303 -7% BEST

Specifications

18 parameters
Product StatusObsolete
Number of Bits12
Sampling Rate (Per Second)80M
Number of Inputs4
Input TypeDifferential
Data InterfaceLVDS - Serial
ConfigurationADC
Ratio - S/H:ADC-
Number of A/D Converters4
ArchitecturePipelined
Reference TypeExternal, Internal
Voltage - Supply, Analog1.7V ~ 1.9V
Voltage - Supply, Digital1.7V ~ 1.9V
FeaturesSimultaneous Sampling
Operating Temperature-40°C ~ 85°C
Package / Case56-VFQFN Exposed Pad
Supplier Device Package56-QFN (8x8)
Mounting TypeSurface Mount
