ADC14DS080CISQE/NOPB

In Stock: 9,741
ADC14DS080CISQE/NOPB - Texas Instruments - Data Acquisition - Analog to Digital Converters (ADC)
REF: ADC14DS080CISQE/NOPB Texas Instruments
ADC14DS080CISQE/NOPB

Texas Instruments

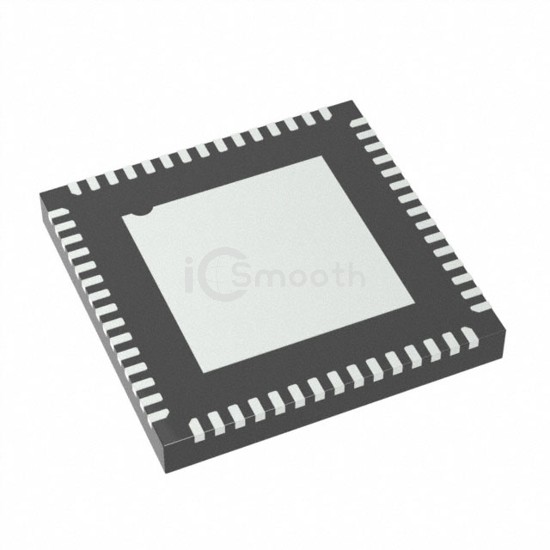

IC ADC 14BIT PIPELINED 60WQFN

ADC14DS080CISQE/NOPB is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 14BIT PIPELINED 60WQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 3.6V, package / case 60-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,741

Specifications

18 parameters
Product StatusActive
Number of Bits14
Sampling Rate (Per Second)80M
Number of Inputs2
Input TypeDifferential
Data InterfaceLVDS - Serial
ConfigurationS/H-ADC
Ratio - S/H:ADC1:1
Number of A/D Converters2
ArchitecturePipelined
Reference TypeExternal, Internal
Voltage - Supply, Analog2.7V ~ 3.6V
Voltage - Supply, Digital2.7V ~ 3.6V
FeaturesSimultaneous Sampling
Operating Temperature-40°C ~ 85°C
Package / Case60-WFQFN Exposed Pad
Supplier Device Package60-WQFN (9x9)
Mounting TypeSurface Mount
