ADC101S101CISD

In Stock: 5,438

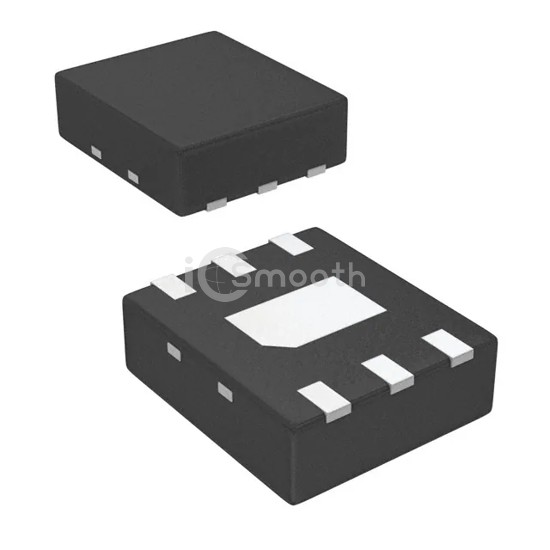

ADC101S101CISD - Texas Instruments - Data Acquisition - Analog to Digital Converters (ADC)
REF: ADC101S101CISD Texas Instruments
ADC101S101CISD

Texas Instruments

IC ADC 10BIT SAR 6WSON

ADC101S101CISD is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 10BIT SAR 6WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 5.25V, package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,438

Tiered Pricing USD
1,000+ $2.0654 —
2,000+ $2.0166 -2%
3,000+ $1.9921 -4%
5,000+ $1.9650 -5% BEST

Specifications

18 parameters
Product StatusObsolete
Number of Bits10
Sampling Rate (Per Second)1M
Number of Inputs1
Input TypeSingle Ended
Data InterfaceSPI, DSP
ConfigurationS/H-ADC
Ratio - S/H:ADC1:1
Number of A/D Converters1
ArchitectureSAR
Reference TypeSupply
Voltage - Supply, Analog2.7V ~ 5.25V
Voltage - Supply, Digital2.7V ~ 5.25V
Features-
Operating Temperature-40°C ~ 85°C
Package / Case6-WDFN Exposed Pad
Supplier Device Package6-WSON (2.2x2.5)
Mounting TypeSurface Mount
