ADC09SJ800AAVTQ1

In Stock: 4,809

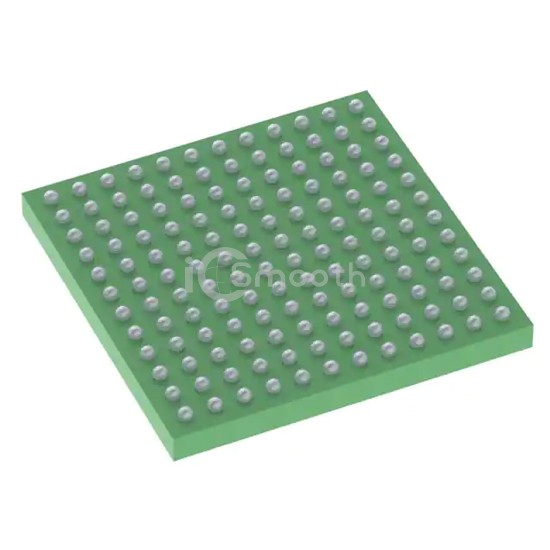

ADC09SJ800AAVTQ1 - Texas Instruments - Data Acquisition - Analog to Digital Converters (ADC)
REF: ADC09SJ800AAVTQ1 Texas Instruments
ADC09SJ800AAVTQ1

Texas Instruments

IC ANALOG TO DIGITAL CONVERTER

ADC09SJ800AAVTQ1 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ANALOG TO DIGITAL CONVERTER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 1.05V ~ 1.15V, package / case 144-FBGA, FCBGA.

Request a Quote

In Stock: 4,809

Specifications

18 parameters
Product StatusActive
Number of Bits9
Sampling Rate (Per Second)800M
Number of Inputs1
Input TypeDifferential
Data InterfaceJESD204C, Serial
ConfigurationADC
Ratio - S/H:ADC0:1
Number of A/D Converters1
ArchitecturePipelined, SAR
Reference Type-
Voltage - Supply, Analog1.05V ~ 1.15V, 1.8V ~ 2V
Voltage - Supply, Digital1.05V ~ 1.15V
Features-
Operating Temperature-40°C ~ 125°C
Package / Case144-FBGA, FCBGA
Supplier Device Package144-FCBGA (10x10)
Mounting TypeSurface Mount
