AD3421QRWERQ1

In Stock: 9,477

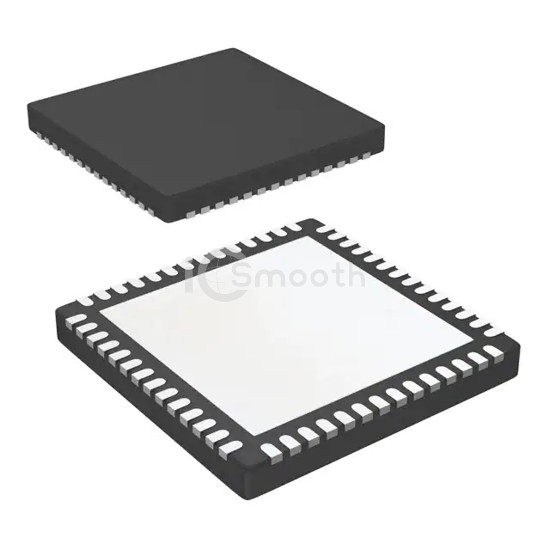

AD3421QRWERQ1 - Texas Instruments - Data Acquisition - Analog to Digital Converters (ADC)
REF: AD3421QRWERQ1 Texas Instruments
AD3421QRWERQ1

Texas Instruments

IC ADC 12BIT PIPELINED 56VQFNP

AD3421QRWERQ1 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 12BIT PIPELINED 56VQFNP. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 125°C, voltage - supply, digital 1.7V ~ 1.9V, package / case 56-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,477

Specifications

18 parameters
Product StatusActive
Number of Bits12
Sampling Rate (Per Second)25M
Number of Inputs4
Input TypeDifferential
Data InterfaceLVDS - Serial
ConfigurationADC
Ratio - S/H:ADC0:1
Number of A/D Converters4
ArchitecturePipelined
Reference TypeExternal
Voltage - Supply, Analog1.7V ~ 1.9V
Voltage - Supply, Digital1.7V ~ 1.9V
FeaturesSimultaneous Sampling
Operating Temperature-40°C ~ 125°C
Package / Case56-VFQFN Exposed Pad
Supplier Device Package56-VQFNP (8x8)
Mounting TypeSurface Mount, Wettable Flank
