Name: 5962-9550403QHA
Brand: Texas Instruments
SKU: 5962-9550403QHA
Availability: InStock

REF: 5962-9550403QHA Texas Instruments

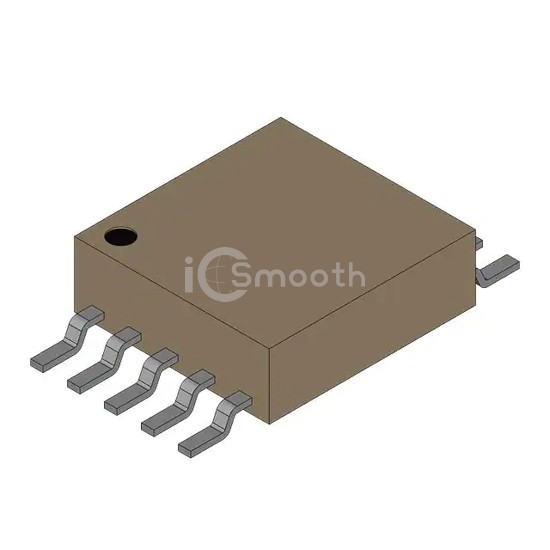

5962-9550403QHA

IC CMOS 2 CIRCUIT 10CFP

5962-9550403QHA is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Texas Instruments. IC CMOS 2 CIRCUIT 10CFP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 10-CDFF, current - supply 400µA (x2 Channels).

Datasheet Request a Quote

In Stock: 9,188

Specifications

17 parameters

Product Status	Active
Amplifier Type	CMOS
Number of Circuits	2
Output Type	Rail-to-Rail
Slew Rate	0.55V/µs
Gain Bandwidth Product	710 kHz
-3db Bandwidth	-
Current - Input Bias	1 pA
Voltage - Input Offset	300 µV

Current - Supply	400µA (x2 Channels)
Current - Output / Channel	50 mA
Voltage - Supply Span (Min)	2.7 V
Voltage - Supply Span (Max)	8 V
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	10-CDFF
Supplier Device Package	10-CFP
