Name: 5962-8680603VEA
Brand: Texas Instruments
SKU: 5962-8680603VEA
Availability: InStock

REF: 5962-8680603VEA Texas Instruments

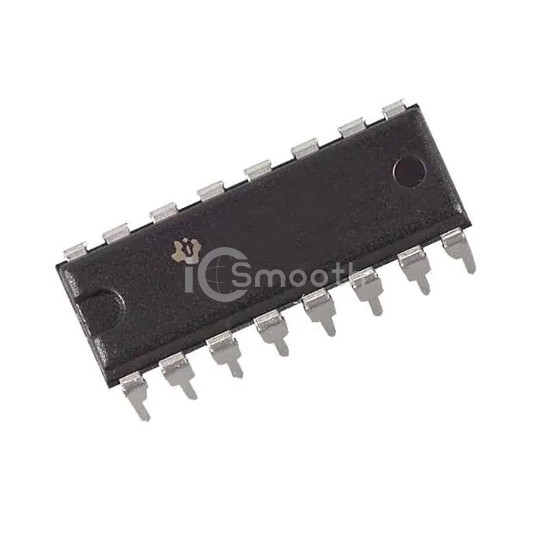

5962-8680603VEA

IC REG CTRLR MULT TOP 16CDIP

5962-8680603VEA is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR MULT TOP 16CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 6.95V ~ 40V, package / case 16-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 8,291

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Up, Step-Down, Step-Up/Step-Down
Output Configuration	Positive
Topology	Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
Number of Outputs	2
Output Phases	1
Voltage - Supply (Vcc/Vdd)	6.95V ~ 40V
Frequency - Switching	200kHz

Duty Cycle (Max)	50%
Synchronous Rectifier	No
Clock Sync	Yes
Serial Interfaces	-
Control Features	Dead Time Control, Enable, Frequency Control, Soft Start
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	16-CDIP (0.300", 7.62mm)
Supplier Device Package	16-CDIP
