3656AG

In Stock: 6,951

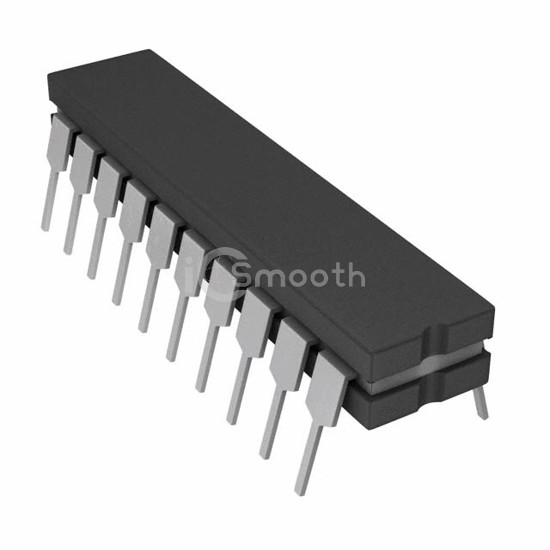

3656AG - Texas Instruments - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
REF: 3656AG Texas Instruments
3656AG

Texas Instruments

IC OPAMP ISOLATION 1 CIRC 20CDIP

3656AG is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Texas Instruments. IC OPAMP ISOLATION 1 CIRC 20CDIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, package / case 20-CDIP (0.900", 22.86mm), current - supply 14mA.

Datasheet Request a Quote

In Stock: 6,951

Specifications

17 parameters
Product StatusObsolete
Amplifier TypeIsolation
Number of Circuits1
Output Type-
Slew Rate0.1V/µs
Gain Bandwidth Product-
-3db Bandwidth30 kHz
Current - Input Bias100 nA
Voltage - Input Offset2 mV
Current - Supply14mA
Current - Output / Channel5 mA
Voltage - Supply Span (Min)17 V
Voltage - Supply Span (Max)32 V
Operating Temperature-25°C ~ 85°C
Mounting TypeThrough Hole
Package / Case20-CDIP (0.900", 22.86mm)
Supplier Device Package20-CDIP
