2N7001TDPWR

In Stock: 6,403

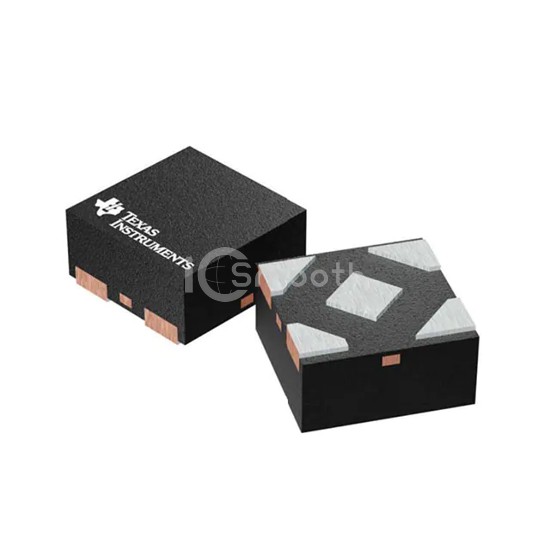

2N7001TDPWR - Texas Instruments - Logic - Translators, Level Shifters
REF: 2N7001TDPWR Texas Instruments
2N7001TDPWR

Texas Instruments

1-BIT DUAL-SUPPLY BUFFERED VOLTA

2N7001TDPWR is a Logic - Translators, Level Shifters manufactured by Texas Instruments. 1-BIT DUAL-SUPPLY BUFFERED VOLTA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 5-XFDFN Exposed Pad, output type Push-Pull.

Datasheet Request a Quote

In Stock: 6,403

Tiered Pricing USD
1+ $0.7500 —
10+ $0.4640 -38%
100+ $0.2989 -60%
500+ $0.2277 -70%
1,000+ $0.2047 -73% BEST

Specifications

16 parameters
Product StatusActive
Translator TypeVoltage Level
Channel TypeUnidirectional
Number of Circuits1
Channels per Circuit1
Voltage - VCCA1.65 V ~ 3.6 V
Voltage - VCCB1.65 V ~ 3.6 V
Input SignalCMOS
Output SignalCMOS
Output TypePush-Pull
Data Rate100Mbps
Operating Temperature-40°C ~ 125°C
Features-
Mounting TypeSurface Mount
Package / Case5-XFDFN Exposed Pad
Supplier Device Package5-X2SON (0.8x0.8)
