SESUB-PAN-D14580

In Stock: 49

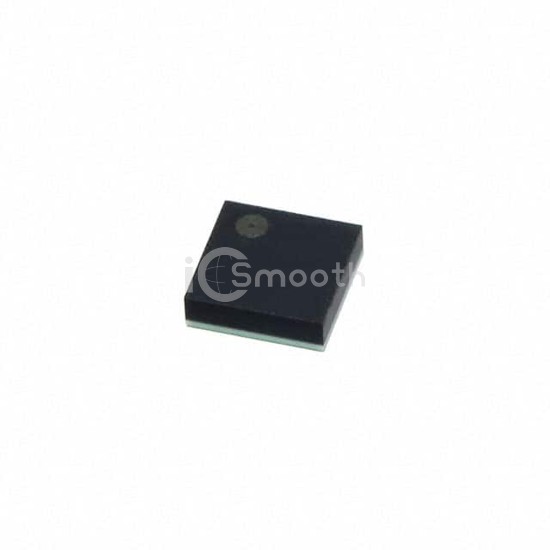

SESUB-PAN-D14580 - TDK Corporation - RF Transceiver ICs
REF: SESUB-PAN-D14580 TDK Corporation
SESUB-PAN-D14580

TDK Corporation

IC RF TXRX+MCU BLUETOOTH 36-SMD

SESUB-PAN-D14580 is a RF Transceiver ICs manufactured by TDK Corporation. IC RF TXRX+MCU BLUETOOTH 36-SMD. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 70°C, voltage - supply 2.35V ~ 3.3V, package / case 36-SMD Module.

Datasheet Request a Quote

In Stock: 49

Tiered Pricing USD
1+ $7.2700 —
10+ $6.6660 -8%
25+ $6.0600 -17% BEST

Specifications

19 parameters
Product StatusObsolete
TypeTxRx + MCU
RF Family/StandardBluetooth
ProtocolBluetooth v4.1
Modulation-
Frequency2.4GHz
Data Rate (Max)-
Power - Output0dBm
Sensitivity-94dBm
Memory Size32kB OTP, 84kB ROM, 50kB SRAM
Serial InterfacesI²C, SPI, UART
GPIO12
Voltage - Supply2.35V ~ 3.3V
Current - Receiving5.4mA
Current - Transmitting5mA
Operating Temperature-20°C ~ 70°C
Mounting TypeSurface Mount
Package / Case36-SMD Module
Supplier Device Package-
