Taiwan Semiconductor Corporation
DIODE ARRAY SCHOTTKY 120V I2PAK

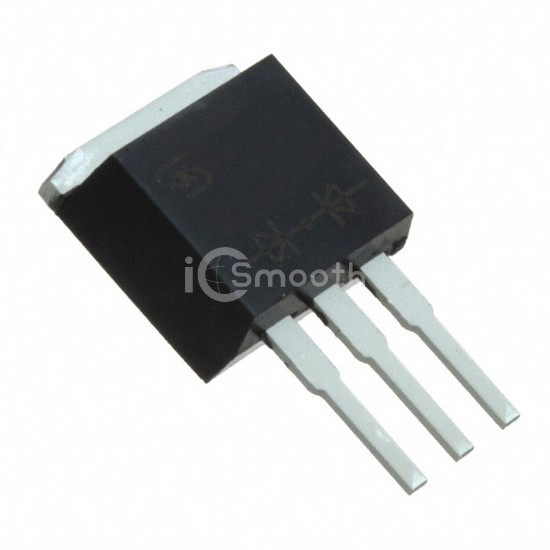

TSI20H120CW is a Diodes - Rectifiers - Arrays manufactured by Taiwan Semiconductor Corporation. DIODE ARRAY SCHOTTKY 120V I2PAK. Key specifications: mounting type Through Hole, package / case TO-262-3 Long Leads, I²Pak, TO-262AA.
In Stock: 939
| Product Status | Obsolete |
|---|---|
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 120 V |
| Current - Average Rectified (Io) (per Diode) | 10A |
| Voltage - Forward (Vf) (Max) @ If | 620 mV @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
|---|---|
| Current - Reverse Leakage @ Vr | 200 µA @ 120 V |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Mounting Type | Through Hole |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA |
| Supplier Device Package | I2PAK |
