Name: TS9015CX5 RFG
Brand: Taiwan Semiconductor Corporation
SKU: TS9015CX5 RFG
Price: 0.58 USD
Availability: InStock

REF: TS9015CX5 RFG Taiwan Semiconductor Corporation

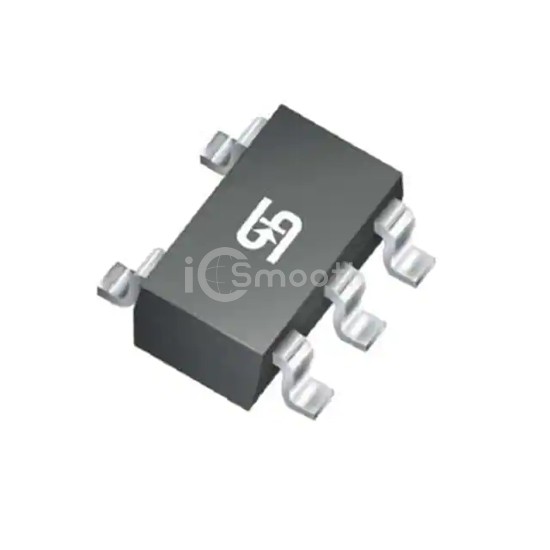

TS9015CX5 RFG

Taiwan Semiconductor Corporation

IC REG LIN POS ADJ 300MA SOT25

TS9015CX5 RFG is a PMIC - Voltage Regulators - Linear manufactured by Taiwan Semiconductor Corporation. IC REG LIN POS ADJ 300MA SOT25. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case SC-74A, SOT-753, current - supply (max) 85 µA.

Datasheet Request a Quote

In Stock: 4,007

Tiered Pricing USD

1+ $0.5800 —

10+ $0.4100 -29%

25+ $0.3676 -37%

100+ $0.3202 -45%

250+ $0.2977 -49%

500+ $0.2842 -51%

1,000+ $0.2730 -53% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	7V
Voltage - Output (Min/Fixed)	1V
Voltage - Output (Max)	5.4V
Voltage Dropout (Max)	1V @ 300mA
Current - Output	300mA

Current - Quiescent (Iq)	-
Current - Supply (Max)	85 µA
PSRR	60dB ~ 35dB (100Hz ~ 10kHz)
Control Features	Current Limit, Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Supplier Device Package	SOT-25
