Name: TS39104CS RLG
Brand: Taiwan Semiconductor Corporation
SKU: TS39104CS RLG
Availability: InStock

REF: TS39104CS RLG Taiwan Semiconductor Corporation

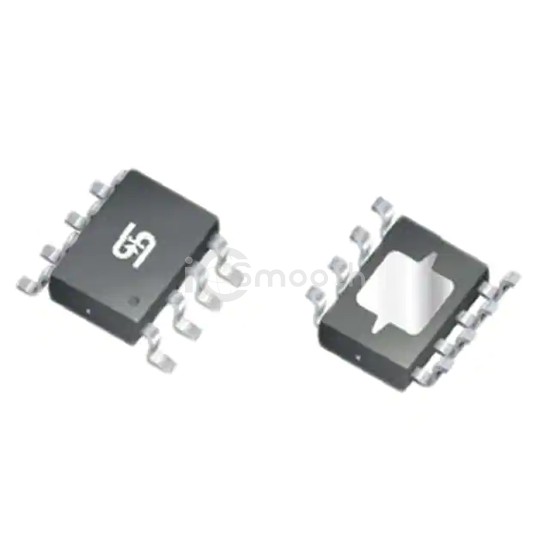

TS39104CS RLG

IC REG LINEAR POS ADJ 1A 8SOP

TS39104CS RLG is a PMIC - Voltage Regulators - Linear manufactured by Taiwan Semiconductor Corporation. IC REG LINEAR POS ADJ 1A 8SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width), current - supply (max) 20 mA.

Datasheet Request a Quote

In Stock: 2,525

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	20V
Voltage - Output (Min/Fixed)	1.25V
Voltage - Output (Max)	16V
Voltage Dropout (Max)	0.63V @ 1A
Current - Output	1A

Current - Quiescent (Iq)	2 mA
Current - Supply (Max)	20 mA
PSRR	-
Control Features	Enable
Protection Features	Over Current, Over Temperature, Reverse Polarity
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOP
