Name: TS1117BCP50 ROG
Brand: Taiwan Semiconductor Corporation
SKU: TS1117BCP50 ROG
Price: 0.32 USD
Availability: InStock

REF: TS1117BCP50 ROG Taiwan Semiconductor Corporation

TS1117BCP50 ROG

Taiwan Semiconductor Corporation

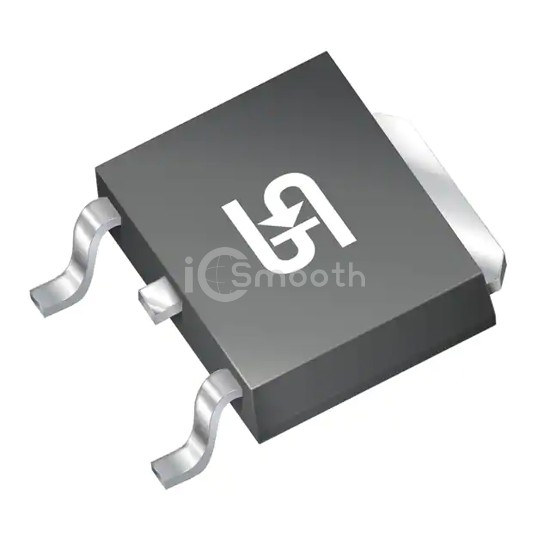

IC REG LINEAR 5V 1A TO252

TS1117BCP50 ROG is a PMIC - Voltage Regulators - Linear manufactured by Taiwan Semiconductor Corporation. IC REG LINEAR 5V 1A TO252. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-252-3, DPak (2 Leads + Tab), SC-63, current - supply (max) 90 µA.

Datasheet Request a Quote

In Stock: 2,505

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	15V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	1.5V @ 1A
Current - Output	1A

Current - Quiescent (Iq)	10 mA
Current - Supply (Max)	90 µA
PSRR	70dB (120Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	TO-252, (D-Pak)
