Name: TPC817S1B RAG
Brand: Taiwan Semiconductor Corporation
SKU: TPC817S1B RAG
Availability: InStock

REF: TPC817S1B RAG Taiwan Semiconductor Corporation

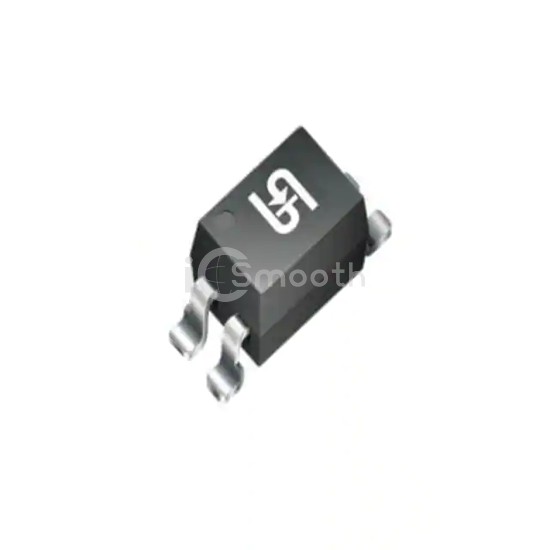

TPC817S1B RAG

OPTOISO 5KV TRANS 4SOP

TPC817S1B RAG is a Optoisolators - Transistor, Photovoltaic Output manufactured by Taiwan Semiconductor Corporation. OPTOISO 5KV TRANS 4SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 8,770

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	130% @ 5mA
Current Transfer Ratio (Max)	260% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	200mV
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SOP
