Name: TPC816D C9G
Brand: Taiwan Semiconductor Corporation
SKU: TPC816D C9G
Price: 0.39 USD
Availability: InStock

REF: TPC816D C9G Taiwan Semiconductor Corporation

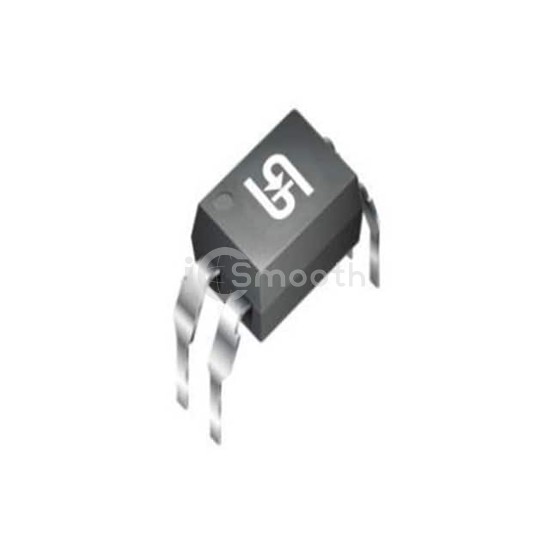

TPC816D C9G

Taiwan Semiconductor Corporation

OPTOISO 5KV TRANS 4DIP

TPC816D C9G is a Optoisolators - Transistor, Photovoltaic Output manufactured by Taiwan Semiconductor Corporation. OPTOISO 5KV TRANS 4DIP. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-DIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 1,971

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	300% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	200mV
Operating Temperature	-30°C ~ 100°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.400", 10.16mm)
Supplier Device Package	4-DIP
