Name: TESDL12V RWG
Brand: Taiwan Semiconductor Corporation
SKU: TESDL12V RWG
Price: 0.26 USD
Availability: InStock

REF: TESDL12V RWG Taiwan Semiconductor Corporation

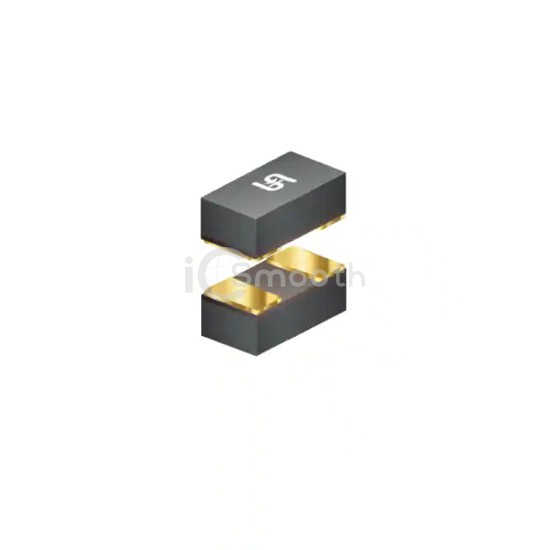

TESDL12V RWG

Taiwan Semiconductor Corporation

1005, 12V, 25W, 12PF, ESD PROTEC

TESDL12V RWG is a TVS - Diodes manufactured by Taiwan Semiconductor Corporation. 1005, 12V, 25W, 12PF, ESD PROTEC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 1005 (2512 Metric).

Datasheet Request a Quote

In Stock: 1,474

Tiered Pricing USD

4,000+ $0.2556 —

8,000+ $0.2413 -6% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	12V (Max)
Voltage - Breakdown (Min)	13V
Voltage - Clamping (Max) @ Ipp	33V
Current - Peak Pulse (10/1000µs)	5A

Power - Peak Pulse	25W
Power Line Protection	No
Applications	USB
Capacitance @ Frequency	12pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	1005 (2512 Metric)
Supplier Device Package	1005
