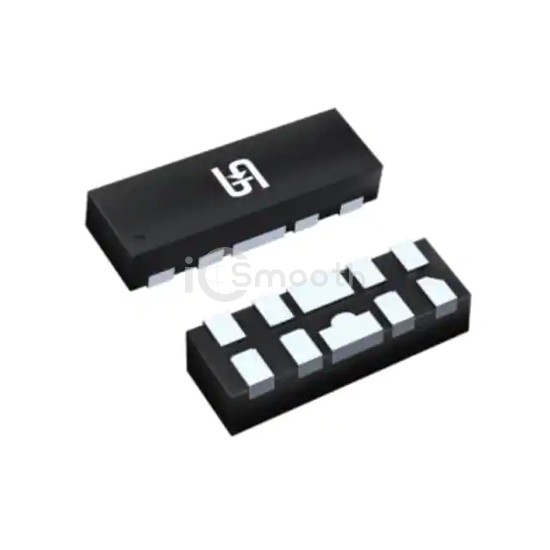

Name: TESDH3V3B02P4Q2 RIG
Brand: Taiwan Semiconductor Corporation
SKU: TESDH3V3B02P4Q2 RIG
Price: 0.36 USD
Availability: InStock

REF: TESDH3V3B02P4Q2 RIG Taiwan Semiconductor Corporation

TESDH3V3B02P4Q2 RIG

Taiwan Semiconductor Corporation

DFN2510-10L, 3.3V, 33W, 0.21PF,

TESDH3V3B02P4Q2 RIG is a TVS - Diodes manufactured by Taiwan Semiconductor Corporation. DFN2510-10L, 3.3V, 33W, 0.21PF,. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFDFN.

Datasheet Request a Quote

In Stock: 3,000

Tiered Pricing USD

1+ $0.3600 —

10+ $0.2760 -23%

100+ $0.1953 -46%

500+ $0.1465 -59%

1,000+ $0.1308 -64% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	4
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	3.3V (Max)
Voltage - Breakdown (Min)	9V
Voltage - Clamping (Max) @ Ipp	6V
Current - Peak Pulse (10/1000µs)	5.5A (8/20µs)

Power - Peak Pulse	33W
Power Line Protection	Yes
Applications	HDMI, USB
Capacitance @ Frequency	0.21pF @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFDFN
Supplier Device Package	DFN2510-10
