Taiwan Semiconductor Corporation

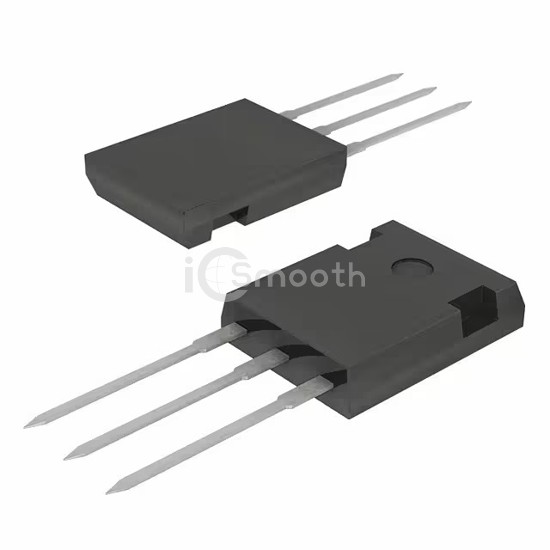

DIODE SCHOTTKY 20A 90V TO247AD
SR2090PTH is a Diodes - Rectifiers - Arrays manufactured by Taiwan Semiconductor Corporation. DIODE SCHOTTKY 20A 90V TO247AD. Key specifications: mounting type Through Hole, package / case TO-247-3.
In Stock: 4,920
| Product Status | Active |
|---|---|
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 90 V |
| Current - Average Rectified (Io) (per Diode) | 20A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 920 mV @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
|---|---|
| Current - Reverse Leakage @ Vr | 100 µA @ 90 V |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247AD (TO-3P) |
