Name: SMF90AH
Brand: Taiwan Semiconductor Corporation
SKU: SMF90AH
Price: 0.06 USD
Availability: InStock

REF: SMF90AH Taiwan Semiconductor Corporation

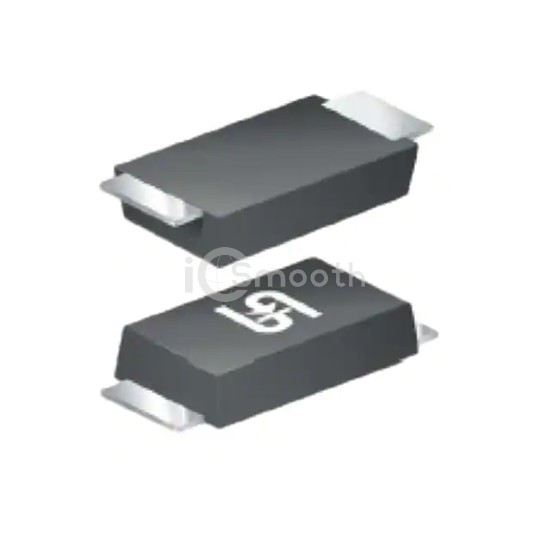

SMF90AH

Taiwan Semiconductor Corporation

TVS DIODE 90VWM 146VC SOD123W

SMF90AH is a TVS - Diodes manufactured by Taiwan Semiconductor Corporation. TVS DIODE 90VWM 146VC SOD123W. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOD-123W.

Datasheet Request a Quote

In Stock: 6,256

Tiered Pricing USD

20,000+ $0.0588 —

30,000+ $0.0563 -4%

50,000+ $0.0535 -9%

70,000+ $0.0530 -10% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	90V
Voltage - Breakdown (Min)	100V
Voltage - Clamping (Max) @ Ipp	146V
Current - Peak Pulse (10/1000µs)	1.05A

Power - Peak Pulse	200W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOD-123W
Supplier Device Package	SOD-123W
