Name: SMF22AH
Brand: Taiwan Semiconductor Corporation
SKU: SMF22AH
Price: 0.38 USD
Availability: InStock

REF: SMF22AH Taiwan Semiconductor Corporation

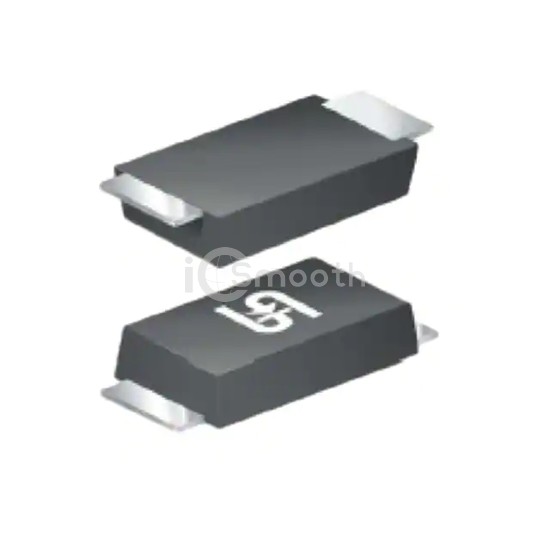

SMF22AH

Taiwan Semiconductor Corporation

TVS DIODE 22VWM 35.5VC SOD123W

SMF22AH is a TVS - Diodes manufactured by Taiwan Semiconductor Corporation. TVS DIODE 22VWM 35.5VC SOD123W. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOD-123W.

Datasheet Request a Quote

In Stock: 4,258

Tiered Pricing USD

1+ $0.3800 —

10+ $0.2320 -39%

100+ $0.1457 -62%

500+ $0.1081 -72%

1,000+ $0.0960 -75%

2,000+ $0.0857 -77% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	22V
Voltage - Breakdown (Min)	24.4V
Voltage - Clamping (Max) @ Ipp	35.5V
Current - Peak Pulse (10/1000µs)	5.6A

Power - Peak Pulse	200W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOD-123W
Supplier Device Package	SOD-123W
