Name: SMDJ90AH
Brand: Taiwan Semiconductor Corporation
SKU: SMDJ90AH
Price: 0.41 USD
Availability: InStock

REF: SMDJ90AH Taiwan Semiconductor Corporation

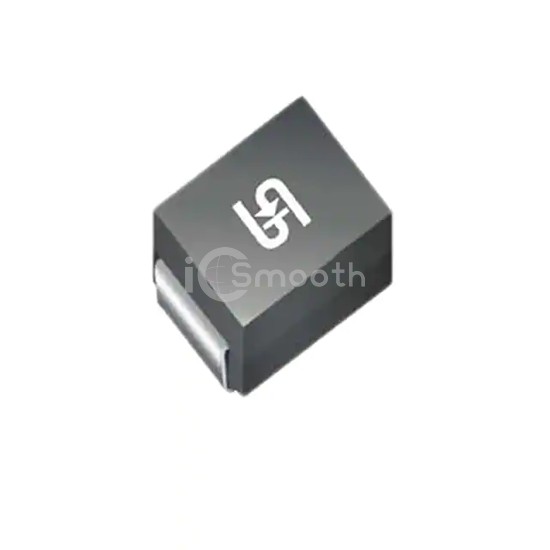

SMDJ90AH

Taiwan Semiconductor Corporation

TVS DIODE 90VWM 146VC DO214AB

SMDJ90AH is a TVS - Diodes manufactured by Taiwan Semiconductor Corporation. TVS DIODE 90VWM 146VC DO214AB. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case DO-214AB, SMC.

Request a Quote

In Stock: 4,282

Tiered Pricing USD

3,000+ $0.4087 —

6,000+ $0.3800 -7%

9,000+ $0.3673 -10% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	90V
Voltage - Breakdown (Min)	100V
Voltage - Clamping (Max) @ Ipp	146V
Current - Peak Pulse (10/1000µs)	20.5A

Power - Peak Pulse	3000W (3kW)
Power Line Protection	No
Applications	Automotive, Telecom
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	DO-214AB (SMC)
