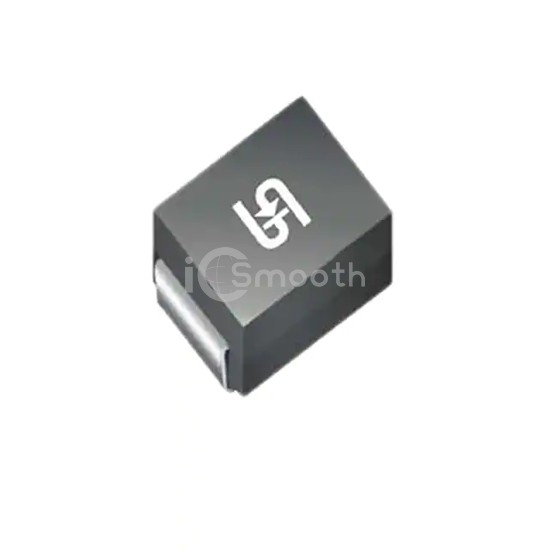

Name: SMCJ90CAHR7G
Brand: Taiwan Semiconductor Corporation
SKU: SMCJ90CAHR7G
Availability: InStock

REF: SMCJ90CAHR7G Taiwan Semiconductor Corporation

SMCJ90CAHR7G

TVS DIODE 90VWM 146VC DO214AB

SMCJ90CAHR7G is a TVS - Diodes manufactured by Taiwan Semiconductor Corporation. TVS DIODE 90VWM 146VC DO214AB. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AB, SMC.

Datasheet Request a Quote

In Stock: 4,995

Specifications

16 parameters

Product Status	Discontinued at Digi-Key
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	90V
Voltage - Breakdown (Min)	100V
Voltage - Clamping (Max) @ Ipp	146V
Current - Peak Pulse (10/1000µs)	10.7A

Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	DO-214AB (SMC)
