Name: SMCJ78AH
Brand: Taiwan Semiconductor Corporation
SKU: SMCJ78AH
Price: 0.23 USD
Availability: InStock

REF: SMCJ78AH Taiwan Semiconductor Corporation

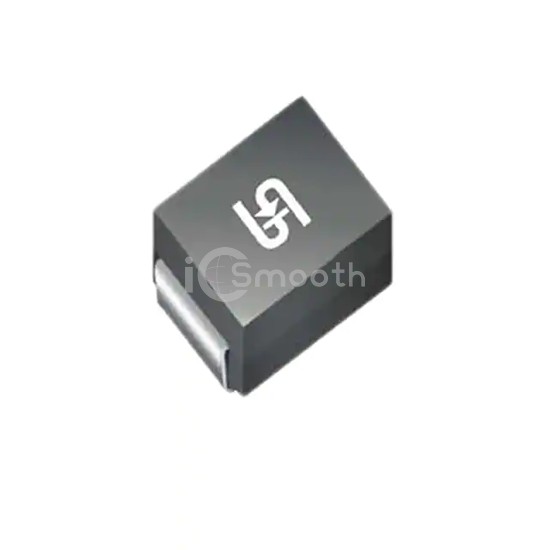

SMCJ78AH

Taiwan Semiconductor Corporation

TVS DIODE 78VWM 126VC DO214AB

SMCJ78AH is a TVS - Diodes manufactured by Taiwan Semiconductor Corporation. TVS DIODE 78VWM 126VC DO214AB. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AB, SMC.

Request a Quote

In Stock: 6,875

Tiered Pricing USD

3,000+ $0.2299 —

6,000+ $0.2116 -8%

9,000+ $0.2023 -12%

15,000+ $0.1919 -17%

21,000+ $0.1857 -19%

30,000+ $0.1854 -19% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	78V
Voltage - Breakdown (Min)	86.7V
Voltage - Clamping (Max) @ Ipp	126V
Current - Peak Pulse (10/1000µs)	12.5A

Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Applications	Automotive, Telecom
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	DO-214AB (SMC)
